Brass |
Nickel Brass |
For Unarmoured & Braided when terminated inside enclosure |
|

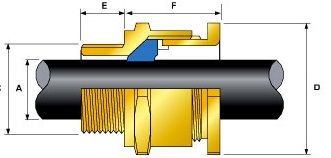

Cable Gland Size |
Available Entry Threads "C" |
Minimum Thread Length "E" |
Overall Cable Diameter "A" |
Across Flats "D" |
Across Corners "D" |
Nominal Protrusion Length "F" |
Ordering Reference (Brass Metric)# |
Shroud Ref * |
Cable Gland Weight (Kgs) |
|||
Standard |
Option |
|||||||||||
Metric |
NPT |
NPT |
Min |
Max |
Max |
Max |
||||||
16 |
M16 |
1/2" |
3/4" |
15.0 |
3.2 |
8.7 |
22.0 |
24.2 |
18.0 |
16A2F1RA |
PVC02 |
0.051 |
20S/16 |
M20 |
1/2" |
3/4" |
15.0 |
3.2 |
8.7 |
24.0 |
26.4 |
21.0 |
20S16A2F1RA |
PVC04 |
0.054 |
20S |
M20 |
1/2" |
3/4" |
15.0 |
6.1 |
11.7 |
24.0 |
26.4 |
21.0 |
20SA2F1RA |
PVC04 |
0.054 |
20 |
M20 |
1/2" |
3/4" |
15.0 |
6.5 |
14.0 |
27.0 |
29.7 |
24.0 |
20A2F1RA |
PVC05 |
0.059 |
25 |
M25 |
3/4" |
1" |
15.0 |
11.1 |
20.0 |
36.0 |
39.6 |
26.0 |
25A2F1RA |
PVC09 |
0.112 |
32 |
M32 |
1" |
1 1/4" |
15.0 |
17.0 |
26.3 |
41.0 |
45.1 |
27.0 |
32A2F1RA |
PVC10 |
0.128 |
40 |
M40 |
1 1/4" |
1 1/2" |
15.0 |
23.5 |
32.2 |
50.0 |
55.0 |
28.0 |
40A2F1RA |
PVC13 |
0.168 |
50S |
M50 |
1 1/2" |
2" |
15.0 |
31.0 |
38.2 |
55.0 |
60.5 |
29.0 |
50SA2F1RA |
PVC14 |
0.224 |
50 |
M50 |
2" |
2 1/2" |
15.0 |
35.6 |
44.1 |
60.0 |
66.0 |
30.0 |
50A2F1RA |
PVC17 |
0.231 |
63S |
M63 |
2" |
2 1/2" |
15.0 |
41.5 |
50.0 |
70.0 |
77.0 |
30.0 |
63SA2F1RA |
PVC20 |
0.360 |
63 |
M63 |
2 1/2" |
3" |
15.0 |
47.2 |
56.0 |
75.0 |
82.5 |
30.0 |
63A2F1RA |
PVC22 |
0.344 |
75S |
M75 |
2 1/2" |
3" |
15.0 |
54.0 |
62.0 |
79.0 |
86.9 |
32.0 |
75SA2F1RA |
PVC24 |
0.466 |
75 |
M75 |
3" |
3 1/2" |
15.0 |
61.1 |
68.0 |
84.0 |
92.4 |
32.0 |
75A2F1RA |
PVC26 |
0.395 |
90 |
M90 |
3" |
3 1/2" |
15.0 |
66.6 |
80.0 |
108.0 |
118.8 |
44.0 |
90A2F1RA |
PVC31 |
1.346 |
100 |
M100 |
4" |
- |
15.0 |
76.0 |
91.0 |
122.0 |
134.2 |
48.0 |
100A2F1RA |
LSF32 |
1.575 |
115 |
M115 |
- |
- |
15.0 |
86.0 |
98.0 |
138.0 |
151.8 |
55.0 |
115A2F1RA |
LSF34 |
2.322 |
130 |
M130 |
- |
- |
15.0 |
97.0 |
115.0 |
154.0 |
169.4 |
62.0 |
130A2F1RA |
LSF35 |
3.400 |
Dimensions are displayed in millimetres |
||||||||||||
| Type | A2F |
| Design Specification | BS 6121:Part 1:1989, IEC 62444, EN 62444 |
| Mechanical Classifications* | Impact = Level 8, Retention = Class B |
| Enclosure Protection | IK10 to IEC 62262 (20 joules) Brass & Stainless Steel only |
| ATEX Certificate | CML 18ATEX1321X, CML 18ATEX4313X |
| UKEX Certificate | "CML 21UKEX1245X,CML 21UKEX4246X","CML 21UKEX1249X,CML 21UKEX4250X" |
| Code of Protection | II 2G, II 1D Ex db IIC Gb, Ex eb IIC Gb, Ex ta IIIC Da II 3G Ex nR IIC Gc I, Type 4X: Ex e II, Ex nR II |
| Compliance Standards | EN 60079-0,1,7,15,31 , IEC 60079-0,1,7,15,31, C22.2 No 0,0.4, 94, 174, CAN/CSA-E60079-0,7,15 |
| IECEx Certificate | IECEx CML 18.0179X |
| CSA Certificate | 1211841 |
| EAC Certificate | C-GB.A07.B.02519/20 |
| KCs Certificate | 13_GA4BO_0748X, 13_GA4BO_0749X, 13_GA4BO_0750X, 14_GA4BO_0251X |
| CCC Certificate | 2020322313002951 |
| INMETRO Certificate | TÜV 21.1075X |
| CCOE / PESO (India) Certificate | Ex d: P548696, Ex e: P533772 Ex nR: P548695 |
| RETIE Certificate | 03866 |
| UkrSEPRO | CU 19.0371X |
| SANS | IA S-XPL21804 21.0008X |
| Marine Approvals | LRS: 01/00172 (E3), DNV: TAE00000Y, ABS: 25-0285992-PDA, BV: 43180/A1BV |
| Ingress Protection Rating ** | IP66, IP67 & IP68 |
| Deluge Protection Compliance | DTS01 : 91 |
| Cable Gland Material | Brass, Electroless Nickel Plated Brass, Stainless Steel, Aluminium |
| Seal Material | CMP SOLO LSF Halogen Free Thermoset Elastomer |
| Sealing Technique | CMP Displacement Seal |
| CMP Displacement Seal | Cable Outer Sheath |
| Optional Accessories | Locknuts, Earth Tags, Serrated Washers, Entry Thread Seals, Shrouds,Ingress Discs |
| Optional Installation Tools | Spanners, Armour Former Tool |
| ECAS Certificate | 24-03-106290/E24-03-110155/NB0007 |
|
|
